Cisco 2802 AP, ME(Mobility Express) 설정

Kimbori9 2022. 11. 15. 13:26

728x90

* AP 연결

AP Console → PC

POE (DATA&POWER OUT) → AP ETHERNET
POE (DATA IN) → PC LAN

* PC IP 설정

IP : 10.0.0.250

SM : 255.0.0.0

GW : 10.0.0.1

* TFTP 준비, Serial 접속 확인

AIR-AP2800-K9-ME-8-8-100-0.tar

capwap ap ip 10.0.0.3 255.0.0.0 10.0.0.1

ap-type mobility-express tftp://10.0.0.2/AIR-AP2800-K9-ME-8-8-100-0.tar

(확인)

AP Running Image : 8.8.100.0
Primary Boot Image : 8.8.100.0

(설정)

Enter Administrative User Name (24 characters max): 장비 접속 User Name
Enter Administrative Password (3 to 24 characters):                                   장비 접속 Password
Re-enter Administrative Password : Password 확인
System Name [Cisco_cc:4f:80] (31 characters max): 장비의 Name
Enter Country Code list (enter ＇help＇ for a list of countries) [US]: 국가 코드 선택 (KE)
Configure a NTP server now? [YES][no]: no
Configure the system time now? [YES][no]: 현재 시간 설정, yes
Enter the date in MM/DD/YY format:
Enter the time in HH:MM:SS format:
Enter timezone location index (enter ＇help＇ for a list of timezones): Timezone 설정, 26
Management Interface IP Address: Management IP
Management Interface Netmask: Management Netmask
Management Interface Default Router: Management Default Router
Create Management DHCP Scope? [yes][NO]: no
Create Employee Network? [YES][no]: yes
Employee Network Name (SSID)?: SSID Name
Employee Network Security? [PSK][enterprise]: SSID 암호화 프로토콜, PSK
Employee PSK Passphrase (8-38 characters)?: SSID Password
Re-enter Employee PSK Passphrase: Password 확인
Create Employee DHCP Scope? [yes][NO]:                                              no
Create Guest Network? [yes][NO]: no

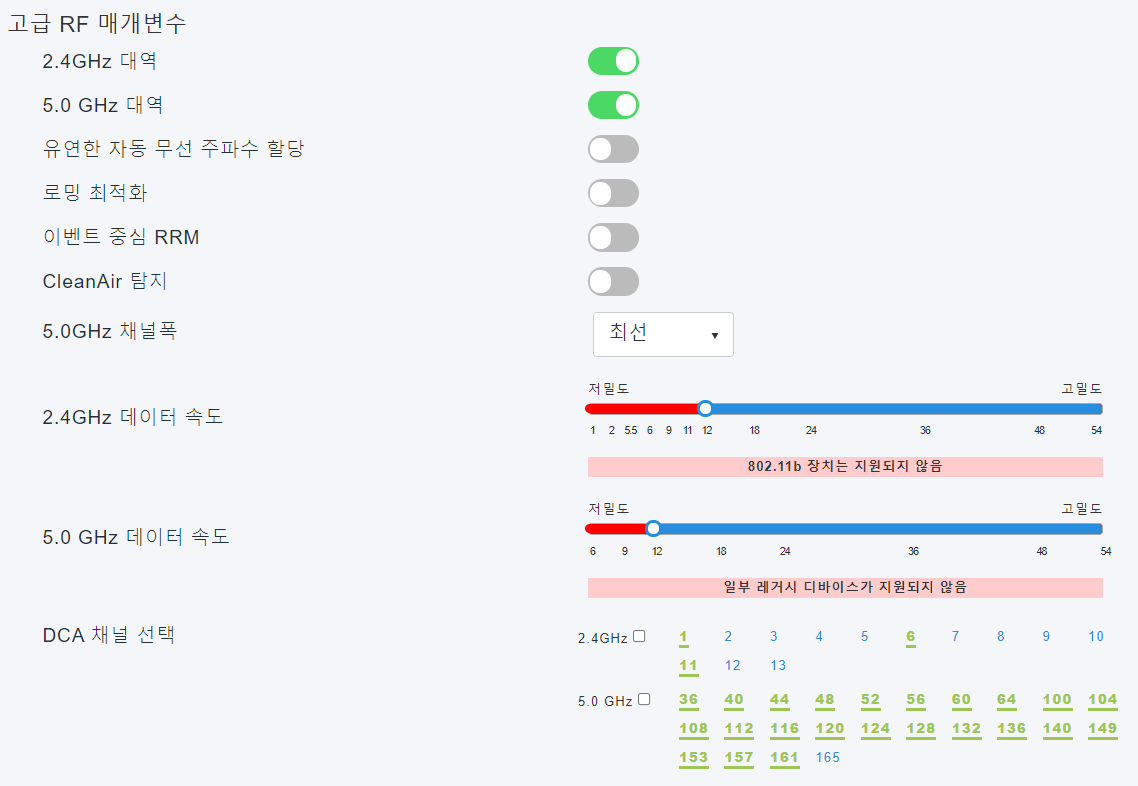

Enable RF Parameter Optimization? [YES][no]: yes
Client Density [TYPICAL][Low][High]: TYPICAL
Traffic with Voice [NO][Yes]: no
Configuration correct? If yes, system will save it and reset. [yes][NO]: yes
